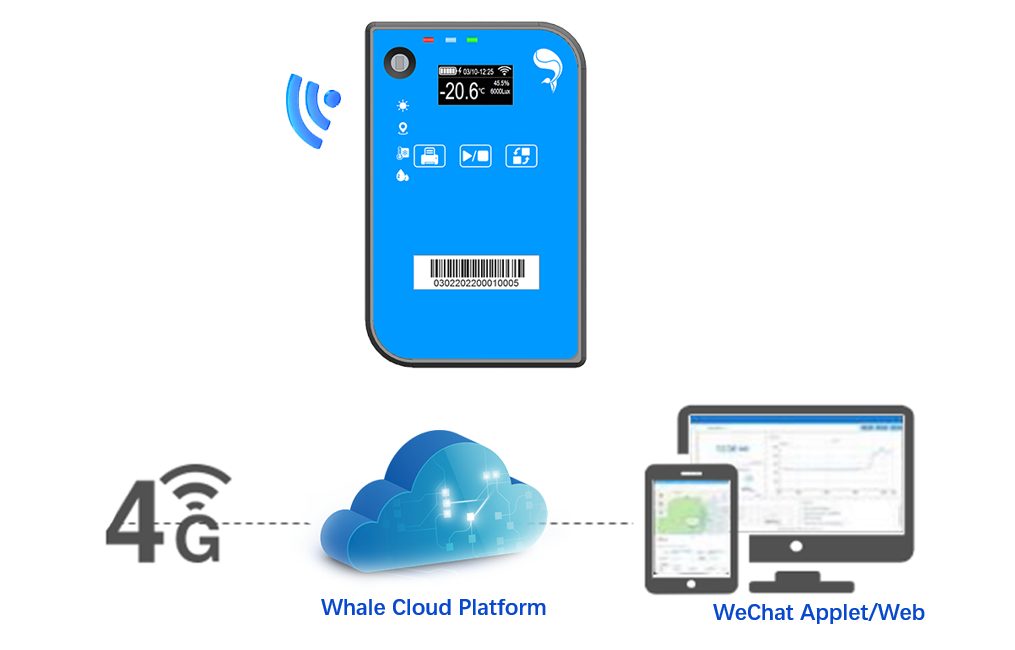

P3A cold chain version is an intelligent hardware product that collects data such as temperature, humidity and illumination in the environment and uploads them to the cloud platform through 4G communication technology. It can collect and monitor the required scenes 7x24 hours without interruption, and the data can be uploaded to the cloud platform and analyzed and processed in time after collection (please check the instructions for use of the whale cloud platform for specific operation). This product has the characteristics of small size, light weight, portable installation, accurate data, safe use, etc. It is widely used in cold chain fresh food/food/medicine and other fields for temperature and humidity monitoring of storage environment.
Product Detail
Product Features

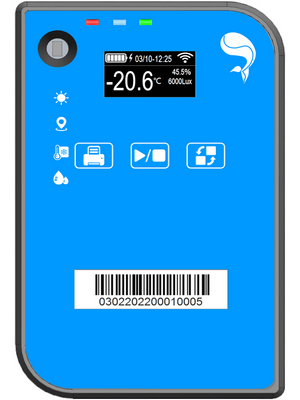

- Data visibility, OLED screen with real-time data display.
- One-touch waybill, quick creation/cancellation of waybill.
- Super long standby, 30 minutes on the report can last 40 days.
- Safety of use, IP66 protection level, cloud management shutdown authority.
- Accurate data, using high-precision temperature and humidity & illumination sensors.
- Worry-free upgrade, support remote upgrade & local upgrade.
- Intermittent transmission, save data locally when the network is interrupted and automatically renew it when the network is restored.
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand：Whale Guard
Series：3 series visual probe products
Model: P3A-2IY1
Color: Blue
Size: Cube
Length 110mm Width 70mm Height 18mm
Material: shell PC + ABS
Weight: 130g
Technical parameters
Principle performance
Detection object: air
Refrigerated vehicle environment
Electrical characteristics
Power supply: built-in battery
Replaceable: No
Additional Description: Rechargeable lithium battery +5V/1A charging
Host Peripherals
Memory: 30,000 data can be stored locally
Display screen: type: black and white screen; sampling/refreshing frequency: 1s
Safety protection
Dustproof/waterproof: IP66
Condensation-proof: No
Equipment positioning
Positioning mode: GNSS (GPS/BDS) + base station
Functional indicators
Indicators
|
Indicators |
Indicator type |
Description |
|---|
|
Temperature |
Temperature |
||
| Measurement accuracy：±0.1℃ Measurement range：-20°C~60°C |
|||
|
Relative humidity |
Relative humidity |
||
| Measurement accuracy：±1.0%RH Measurement range：0%RH~99%RH |
|||
|
Light level |
Light level |
||
| Measurement accuracy：±1% Measurement range：0lux~65535lux |
|||
Data interface
|
Interface |
Interface type |
|
|
|
|
|---|
|
Cellular Networks |
Cellular Networks |
|||||
| Communication technology：4G | ||||||
Installation and maintenance
Installation: Mounting bracket + screws / adhesive / magnetic suction optional
Maintenance Warranty
Warranty period: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
