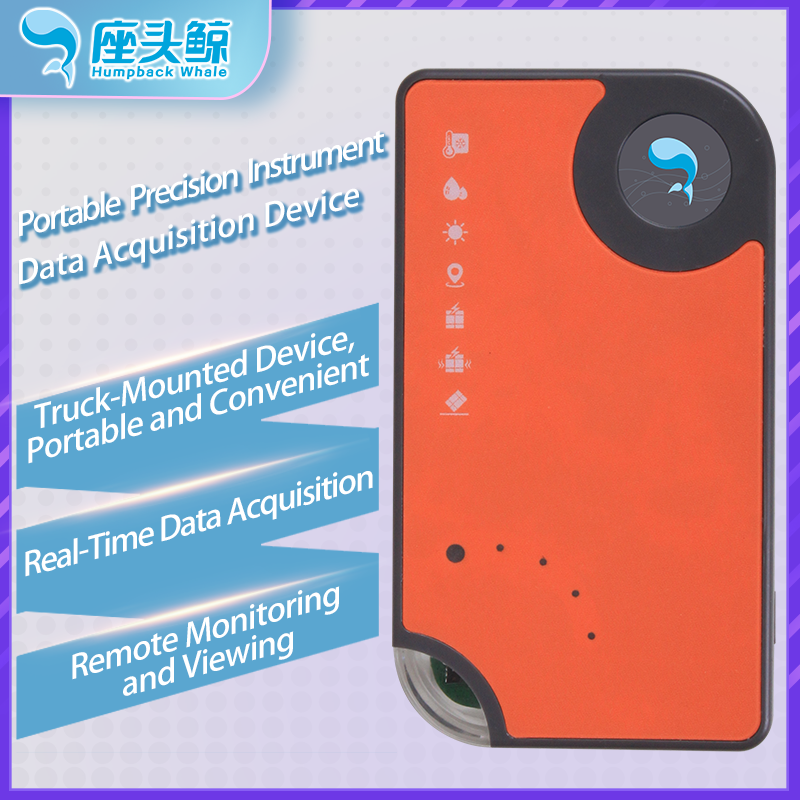

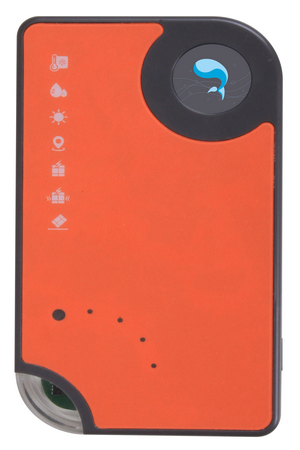

Portable 2.3 series is a logger based on CAT.1_4G communication technology to collect and monitor various data such as temperature, humidity, illumination, tilt value, vibration value and position. It can realize 7x24 hours uninterrupted collection and monitoring. After collecting data, it can be uploaded to the cloud platform in time for real-time monitoring. It has the characteristics of small size, light weight, long standby, portable installation, accurate data, safe use, etc. It is widely used in the fields of medicine and medical care, cold chain, fresh food, aerospace and aviation, electronics and semiconductors, transport or storage of valuable items. Portable 2.3 series is a logger based on CAT.1_4G communication technology to collect and monitor various data such as temperature, humidity, illumination, tilt value, vibration value and position. It can realize 7x24 hours uninterrupted collection and monitoring. After collecting data, it can be uploaded to the cloud platform in time for real-time monitoring. It has the characteristics of small size, light weight, long standby, portable installation, accurate data, safe use, etc. It is widely used in the fields of medicine and medical care, cold chain, fresh food, aerospace and aviation, electronics and semiconductors, transport or storage of valuable items.
Product Detail
Basic Information

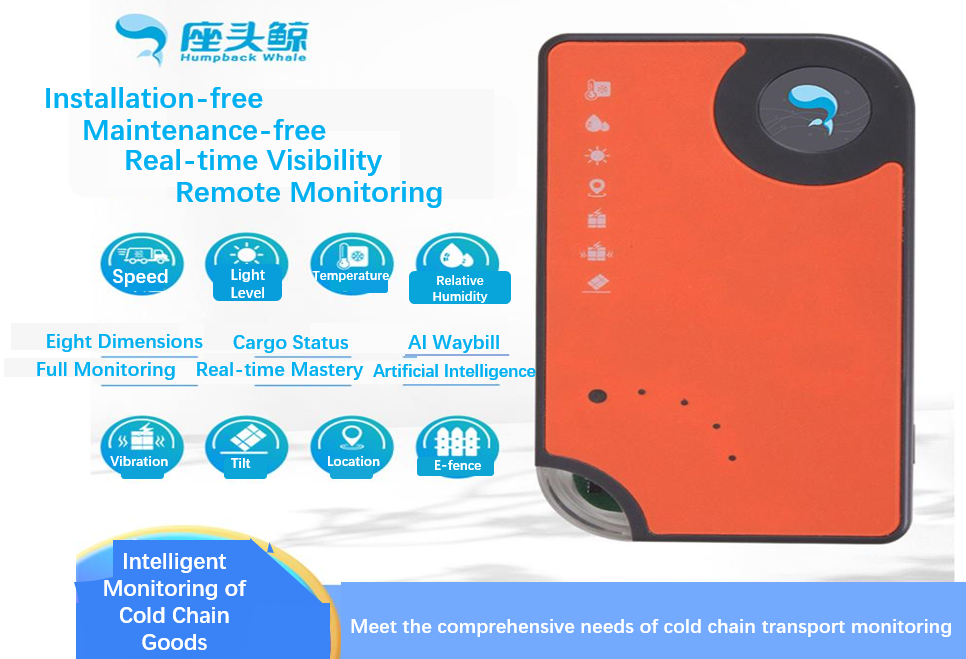

Product features：
-Ultra-long range, 60 minutes on the report can last 70 days.
accurate positioning: support GPS/BeiDou + base station positioning.
-Accurate acquisition, imported temperature and humidity/6-axis//lightness sensors.
-One key waybill, one key to quickly establish/cancel waybill.
-Worry-free upgrade, support remote upgrade/local upgrade.
-Multiple modes, low power / flight / normal / waybill mode.
-Easy installation, no construction, ready to use, flexible installation.
-Safety of use, remote shutdown to prevent cheating, IP55 level protection.
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: Whale Guard series international version of the vehicle portable P2.3 precision instrument data acquisition equipment
Model: P23-2IN1
Color: Heat Orange
Size: Cube Length:120mm Width:68mm Height 20mm
Material: Shell PC+ABS
Weight: 200g
Technical parameters
Principle performance:
Detection object: transport cargo
Power supply mode:
Built-in battery
Capacity: 4000mAh
Replaceable: No
Safety protection
Dustproof / Waterproof :IPX5
Condensation-proof :No
Equipment positioning
Positioning mode: BDS/GPS+base station

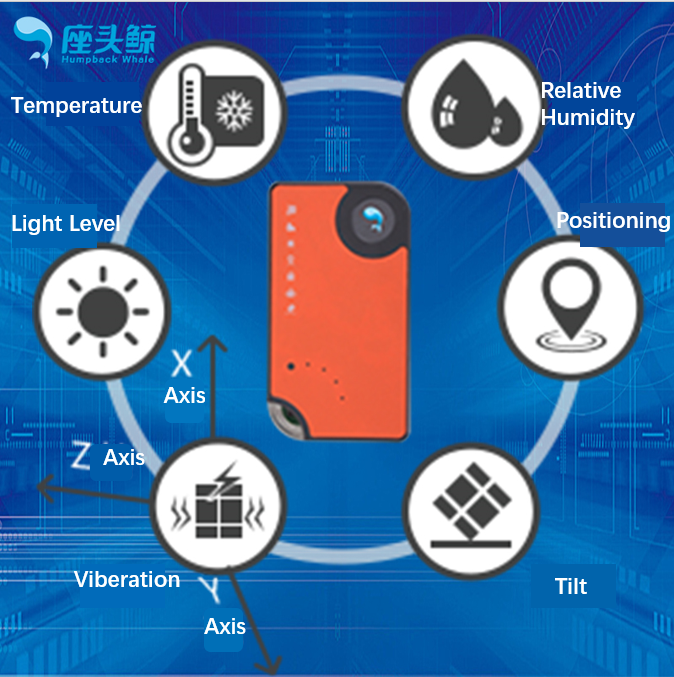

Functional indicators
Indicators
| Indicator | Measurement accuracy | Measurement range |
| Angles | 0°~90° | |
| Viberation | ±16g（Total viberation,X,Y,Z） | |
| Temperature | 0.01℃ | -20°C~60°C |
| Relative humidity | 1%RH | 0%RH~95%RH |
| Light level | 0lux~65535lux |
Data interface
| Interface | Interface type | ||||
| Celluar networks | Celluar networks |
Installation and Maintenance
Installation: No installation required
Wiring: No installation required
Maintenance Warranty
Warranty period: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
