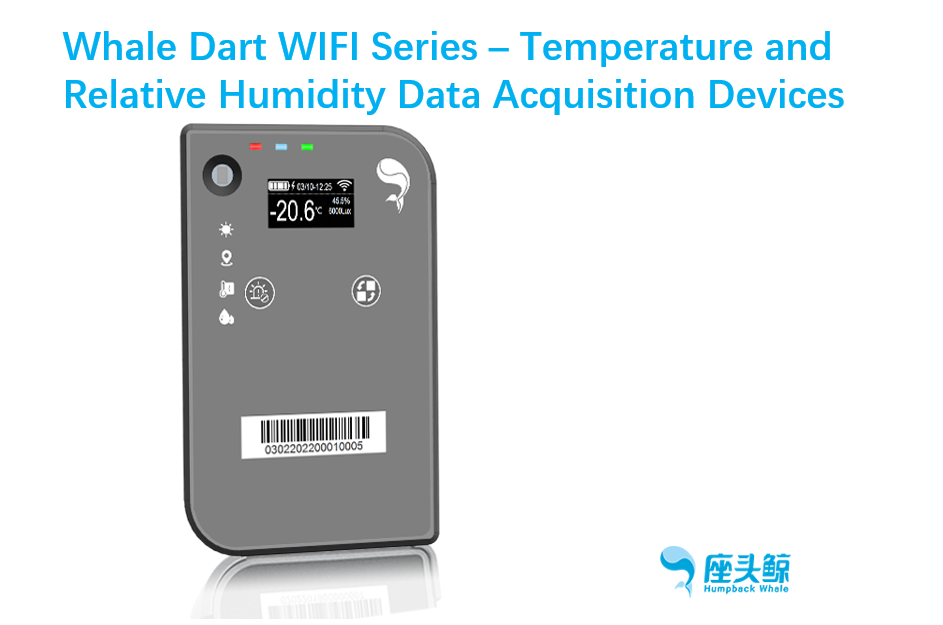

The WiFi version of the Whale Guard series is an intelligent hardware product that collects temperature and humidity, light level and other data in the environment and uploads them to the cloud platform through wireless communication technology. It can collect and monitor the required scenes 7x24 hours without interruption, and the data can be uploaded to the cloud platform in time for analysis and corresponding processing (please refer to the instructions for use of the whale cloud platform for specific operations). This product has the characteristics of small size, light weight, portable installation, accurate data, safe use, etc. It is widely used for temperature and humidity monitoring of storage environment in cold chain fresh food/food/medicine, etc.
Product Detail
Basic Information

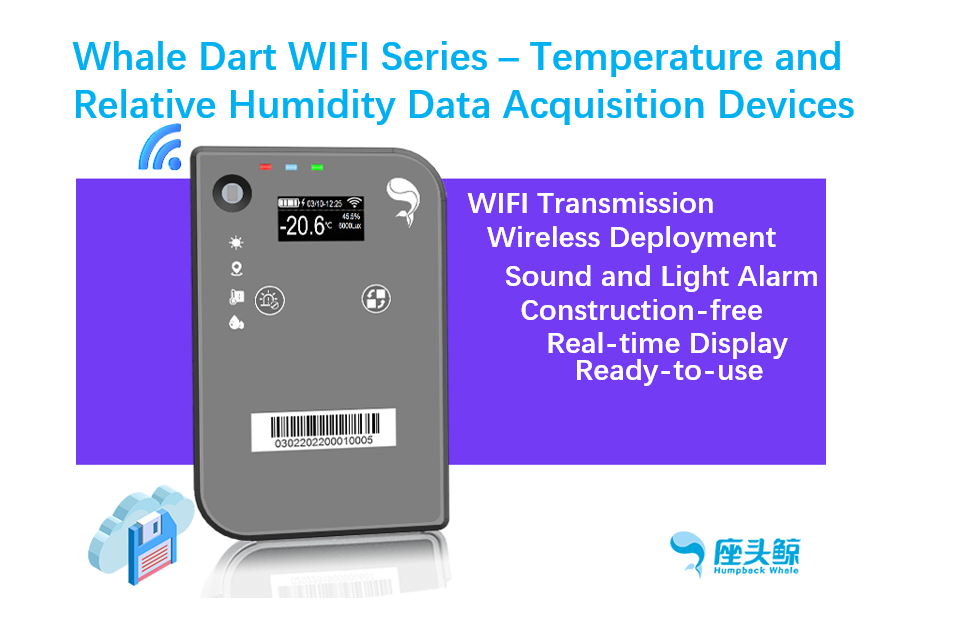

Product Features:
-Easy installation, ready to install and use, eliminating wiring works, saving time and cost
-Wireless deployment, large range coverage, super number of connections, convenient to increase or decrease the number of probes
-Wireless communication, the probe reports data to the whale cloud platform via WiFi.
-Easy installation, ready to install and use, eliminating wiring works and saving costs
-Intermittent transmission, data is saved locally when the network is interrupted and automatically renewed when the network is restored.
-Ultra-high protection, IPX5 protection level.
-Real-time display, 0.96" screen showing real-time data.
-Sound and light alarm, sound and light alarm when the data exceeds the set threshold.
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: T3 series WiFi probe products
Model: T3A-1OY1
Color: Charcoal gray
Size: Cube Length:110mm Width:70mm Height 18mm
Material: Shell PC+ABS
Technical parameters
Electrical characteristics
Power supply method:
Built-in battery
Capacity: 1500mAh
Replaceable: No
Additional Description: Rechargeable lithium battery +5V/1A charging
2 months (10℃/5 minutes up)
Safety protection
Dustproof / Waterproof: IPX5
Condensation-proof: No
Functional indicators
Indicators
| Indicator | Measurement accuracy | Measurement range | |
| Temperature | 0.1℃ | 0°C~60°C | |
| Relative humidity | 1%RH | 0%RH~99%RH | |
| Light level | 1lux | 0lux~65535lux |
Data interface
| Interface | Interface type | ||||
| Wi-Fi | Wi-Fi |
Installation and Maintenance

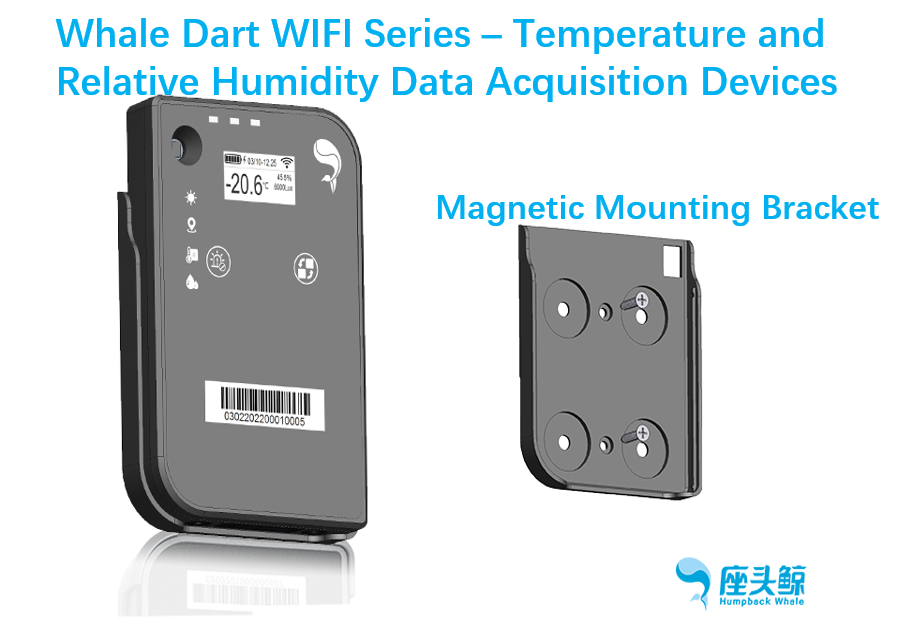

Installation: magnetic suction, screws, adhesive backing
Maintenance Warranty
Warranty: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
