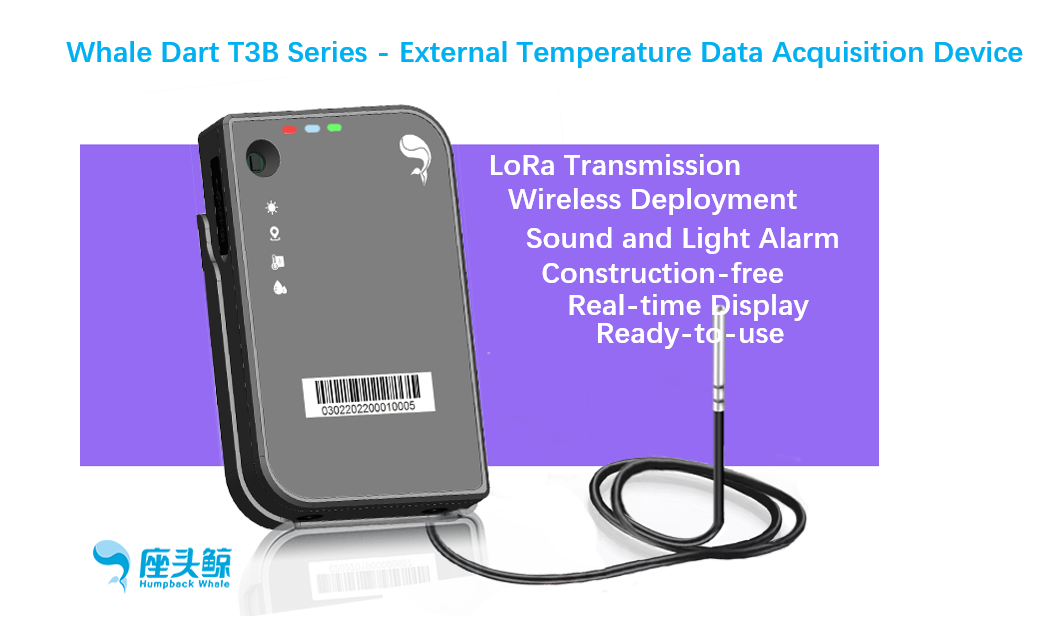

Whale Guard T3B series is an intelligent hardware product that collects temperature and humidity, light level and other data in the environment and uploads it to the cloud platform through wireless communication technology. It can collect and monitor the required scenes 7x24 hours without interruption, and the data can be uploaded to the cloud platform in time for analysis and corresponding processing after collection (please check the instructions for use of the whale cloud platform for specific operations). This product has the characteristics of small size, light weight, portable installation, accurate data, safe use, etc. It is widely used for temperature and humidity monitoring of storage environment in cold chain fresh food/food/medicine, etc.
Product Detail
Basic Information
Product Features:
-Wireless deployment, large range coverage, super number of connections, convenient to increase or decrease the number of probes.
-Wireless communication, the probe reports the data to the whale cloud platform through LoRa.
-Easy installation, ready to install and use, eliminating wiring works and saving costs.
-Intermittent transmission, data is saved locally when the network is interrupted and automatically renewed when the network is restored
-Ultra-high protection, IPX5 protection level.
-Sound and light alarm, sound and light alarm when the data exceeds the set threshold.
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: T3B series probe products
Model: T3B-1ON1
Color: Carbon Gray
Size: Cube Length: 110mm Width: 70mm Height 24mm
Material: Shell PC+ABS
Weight: 142g
Technical parameters
Principle performance:
Detection object: transport cargo
Power supply mode:
Built-in battery
Capacity: 8000mAh
Safety protection
Dustproof / Waterproof :IPX5
Condensation-proof :No
Local alarm
Alarm mode: sound and light alarm
Funcational indicators
Indicators
| Indicator | Measurement accuracy | Measurement range |
| Temperature | 0.1℃ | -40°C~100°C |
| Light level | 0lux~65535lux |
Data interface
| Interface | Interface type | Communication protocol | Data protocol | Description | |

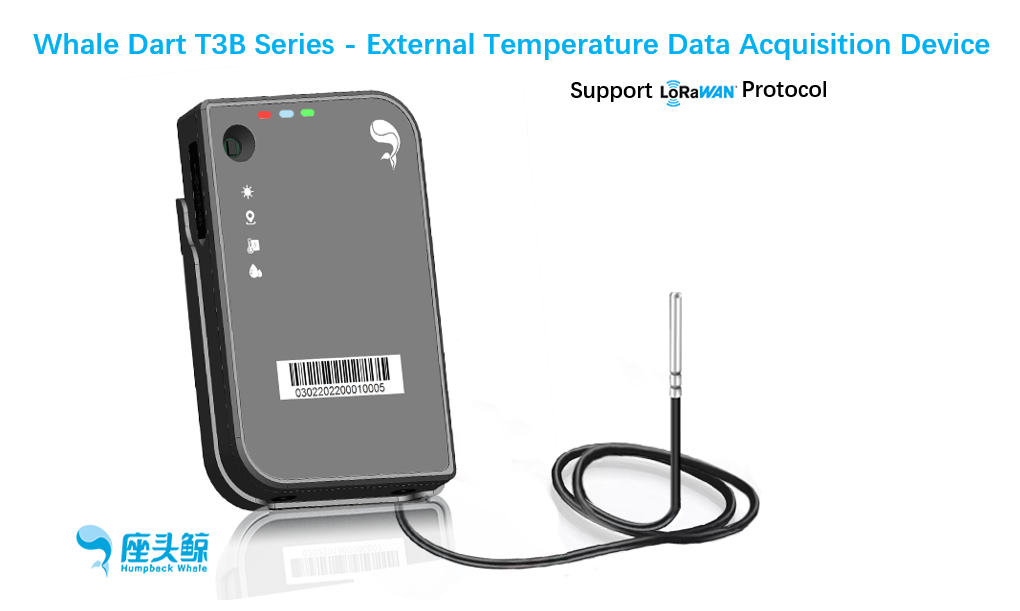

| Lora | Lora | LoraWan |
Installation and Maintenance

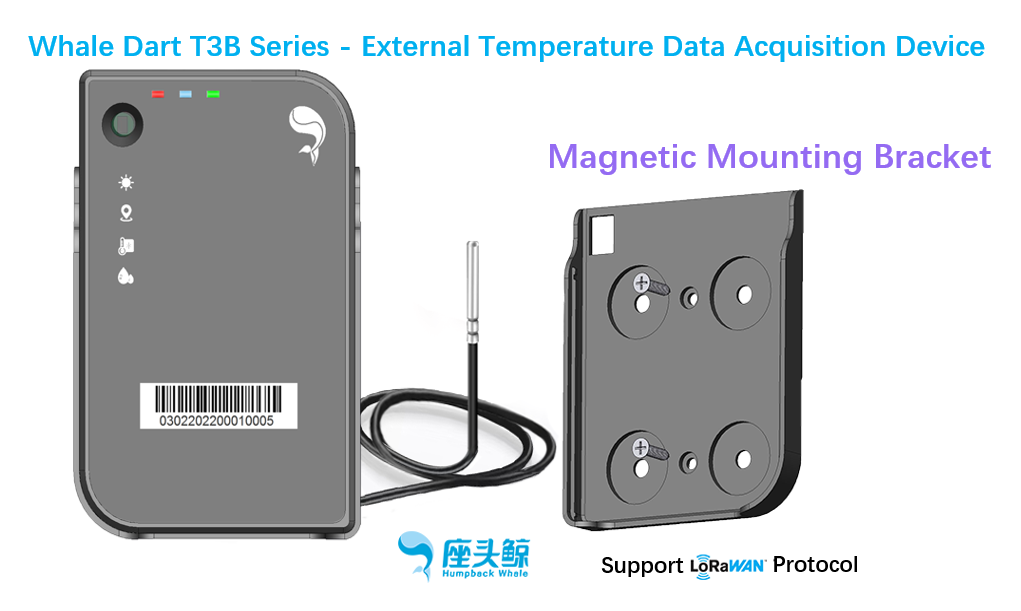

Installation: magnetic suction, screws, adhesive backing
Maintenance Warranty
Warranty: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
