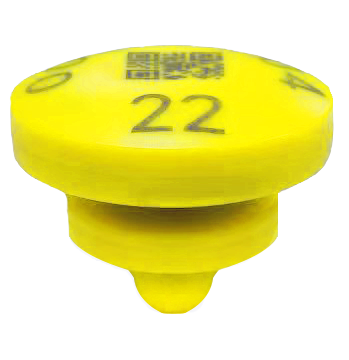

Fattening positioning ear tag (including the main tag + sub tag) is a smart hardware product used for the identification and management of live assets in the smart farm, the main functions are: monitoring the location and movement of cattle / sheep / pigs, as well as anti-theft. Combined with the supporting gateway and cloud platform, users can easily and quickly understand the real-time status of live assets, find violations in a timely manner to alert and avoid potential risks.
Basic information
Product features: waterproof, dustproof, long standby time.
multiple electronic anti-tampering, abnormal removal alarm.
built-in motion sensor of the device to ensure the survival of animals through data.
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Series: Ear tag
Model:TA-9IN1
Color: lemon yellow
Size: Irregular shape
Additional Description: φ41*H34mm
Material: PC + ABS / stainless steel
Weight: 20g
Technical parameters
Principle performance
Working principle: positioning + live detection + anti-tampering alarm + RFID + mechanical anti-tampering
Detection object: animals
RFID reading distance: 0m ~ 1.5m
Electrical characteristics
Power supply mode: built-in battery
Capacity: 600mAh
Replaceable: No
Environmental requirements
Operating temperature: -20°C ~ 60°C
Operating Humidity: 0%RH ~ 99%RH
Safety Protection
Dustproof/waterproof: IP66
Condensation-proof: No
Local Alarm
Alarm mode: the main and vice standard separation can alarm
Equipment positioning
Positioning mode: Bluetooth triangle positioning
Positioning accuracy: 5m
Data interface
Interface |
Interface type |
|
|
|
|
---|
Bluetooth |
Bluetooth |
Installation and maintenance
Installation: Provide matching ear tagging pliers, painless and fast marking
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
