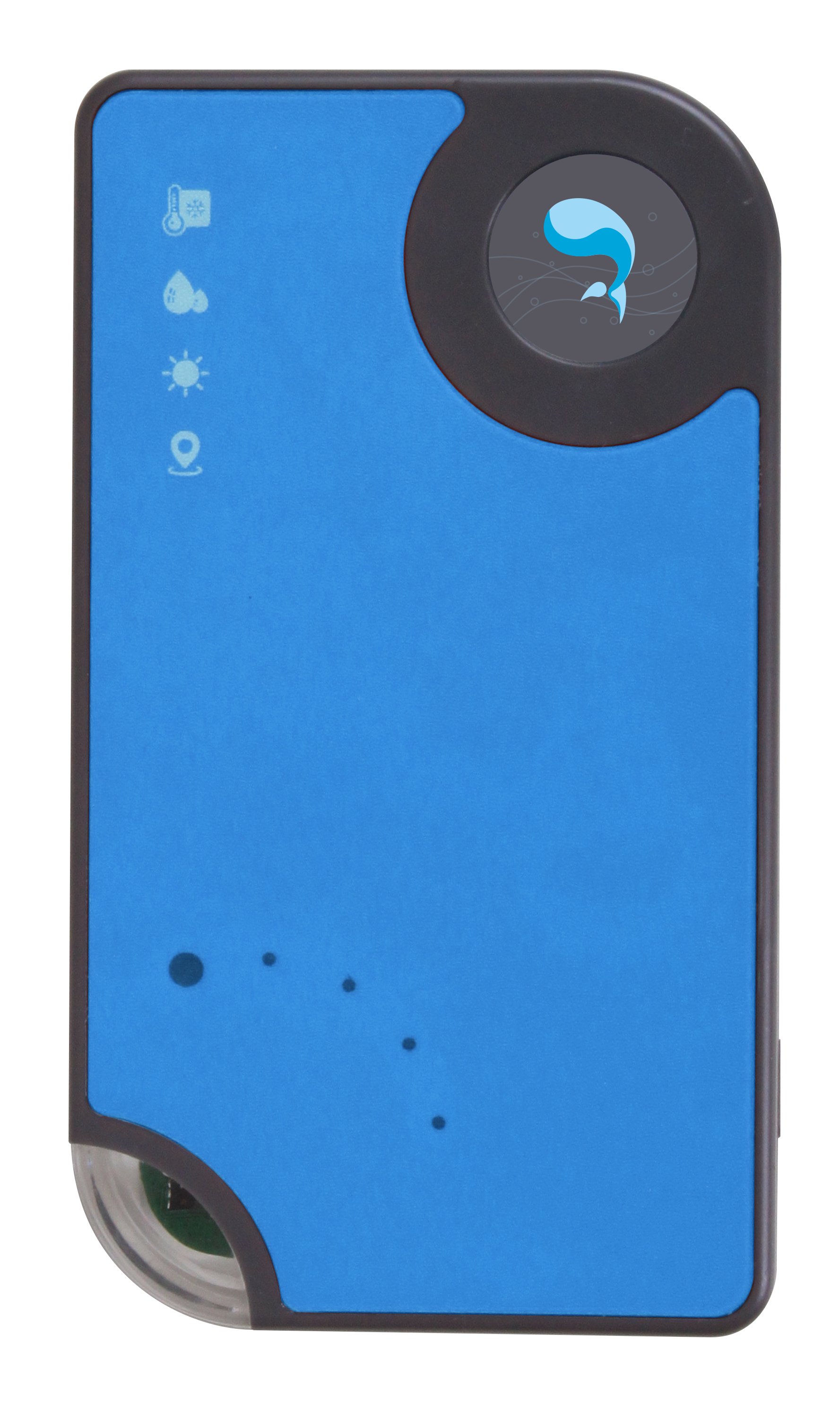

Whale Guard series portable cold chain transport data acquisition logger is a series of low power consumption based on GSM 4-band communication technology, which collects and monitors various data such as temperature, humidity, illumination and location. It can realize 7x24 hours uninterrupted collection and monitoring. After collecting data, it can be uploaded to the cloud platform for real-time monitoring. It has the characteristics of small size, light weight, long standby, portable installation, accurate data, safe use, etc. It is widely used in the field of cold chain transportation medical equipment / aerospace / electronic semiconductors / valuable items, etc.
Product Detail
Basic Information
Product Features
-Accurate positioning, support GPS + base station positioning.
-Accurate collection, imported temperature and humidity/lightness sensors.
-One key waybill, one key to quickly establish/cancel waybill.
-Multiple modes, low power / flight / normal / waybill mode.
-Easy installation, no construction, ready to use, flexible installation.
-Safety in use, remote shutdown to prevent cheating, IP55 level protection.
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand：Whale Guard
Series：Whale Guard series portable cold chain transport data collection recorder
Model：CC22-G-4000D
Color: Blue
Size: Cube
Length: 120mm
Width: 68mm
Height: 20mm
Material: shell PC + ABS
Weight: 200g
Technical parameters
Principle performance
Detection object: transport cargo
Electrical characteristics
Power supply mode: built-in battery
Capacity: 4000mAh
Replaceable: No
Safety protection
Dustproof/waterproof: IP55
Condensation-proof: No
Device positioning
Positioning mode: GPS + base station
Funcational indicators
Indicators
|
Indicators |
Indicator typs |
Description |
|---|
|
Temperature |
Temperature |
||
| Measurement accuracy：0.01℃ Measurement range：-30°C~60°C |
|||
|
Relative humidity |
Relative humidity |
||
| Measurement accuracy：1%RH Measurement range：0%RH~95%RH |
|||
|
Light level |
Light level |
||
| Measurement range：0lux~65535lux | |||
Data interface
|
Interface |
Interface type |
|
|
|
|
|---|
|
Cellular Networks |
Cellular Networks |
Installation and maintenance
Installation: No installation required
Wiring method: No wiring required
Maintenance Warranty
Warranty period: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
