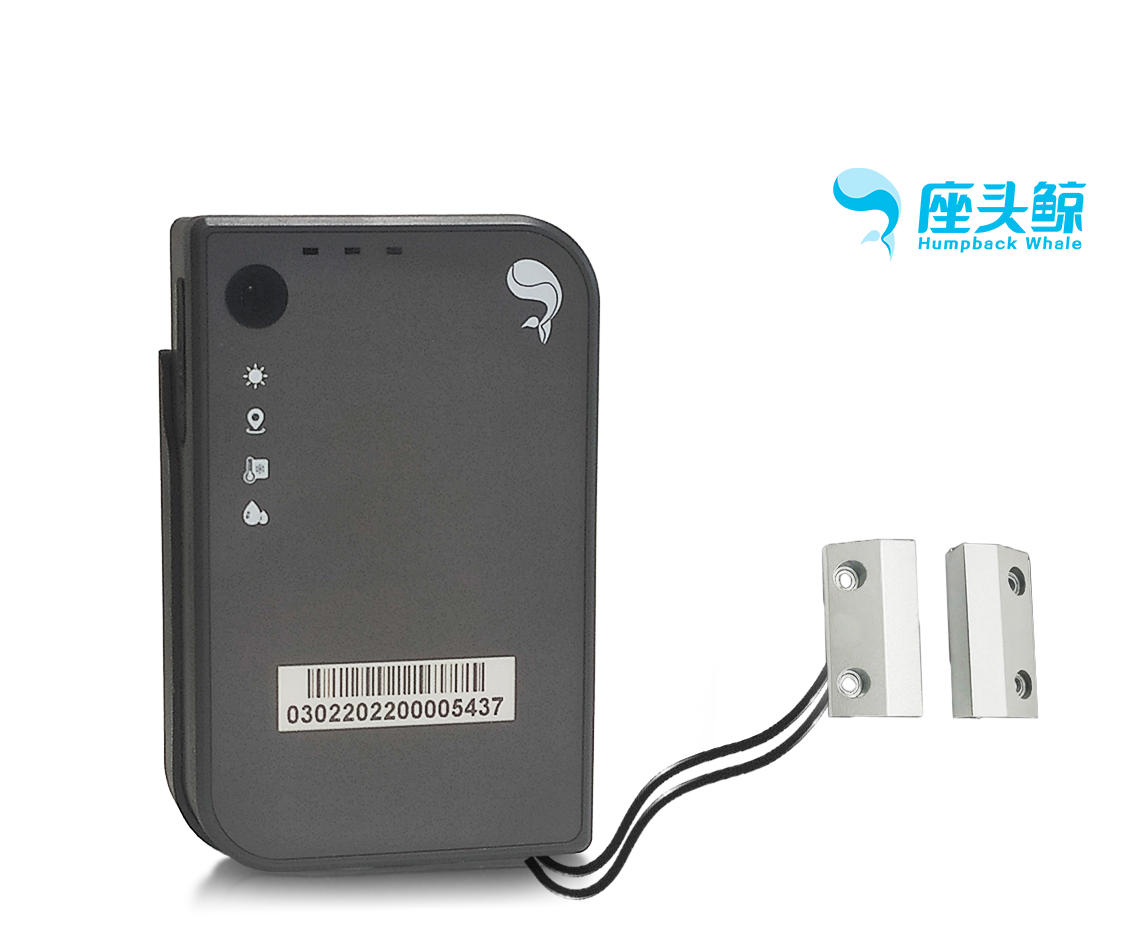

Whale Guard series intelligent door magnetic data collection equipment not only provides real-time collection and monitoring of temperature and humidity data, but also can record every time the door is opened and closed and alarm. The combination of human and technical defense brings great convenience to real-time accurate prevention and control. Whale Guard intelligent data collection equipment can realize 7x24 hours uninterrupted collection of temperature and humidity, opening and closing doors and other data, and realize 24-hour remote "cloud supervision" from raw material procurement to production and sales in the "Whale Cloud" SAAS platform. ", to avoid the input risk brought by personnel contact, etc
Product Detail
Basic Information
Product features:
-Wireless communication, data transmission between the gateway and the probe terminal via lora.
-Ultra-long standby, built-in battery life up to 3 years.
-Intermittent transmission, when the network is interrupted, the device saves the data first. Wait for the network to resume and then renew the transmission
-Continuous acquisition, 365*24 uninterrupted data acquisition can be realized
-Multi-dimensional data acquisition, while monitoring the door opening and closing events, the temperature and humidity data in the installation environment are collected
-Ultra-high protection, IPX5 protection level
-Flexible installation: can be used for vehicles and also for warehouses
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: T3A series probe products

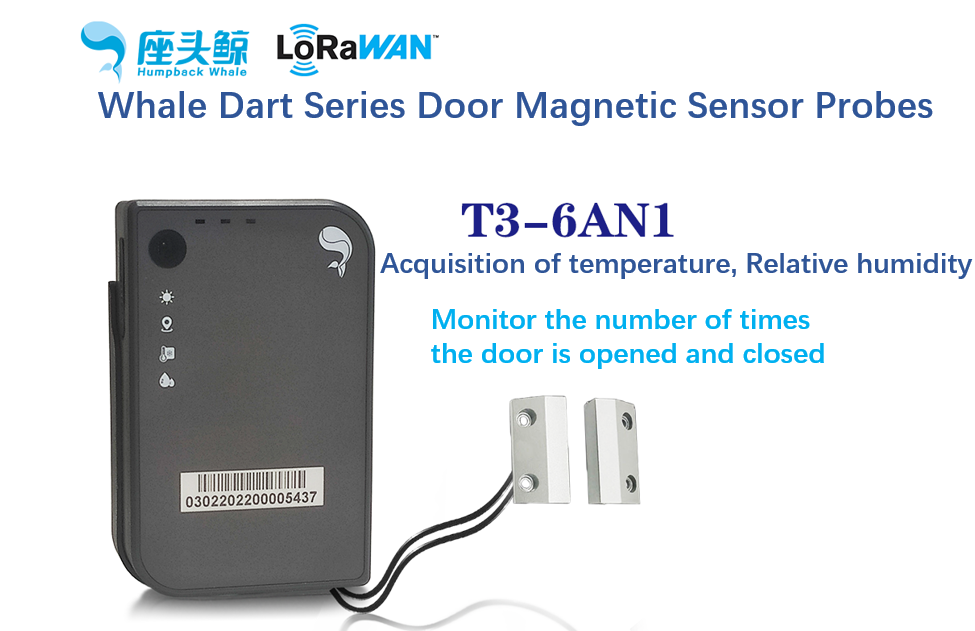

Model: T3-6AN1
Color: Carbon Gray
Size: Cube
Length: 118mm Width: 72mm Height 27mm
Material: Shell PC+ABS
Technical parameters
Principle performance.
Detection object: opening and closing door events and environmental data acquisition
Power supply mode:
Built-in battery
Capacity: 8000mAh Replaceable:Yes
Safety protection
Dustproof / Waterproof :IPX5
Condensation-proof :No
Local alarm
Alarm mode: sound and light alarm
Funcational indicators
Indicators
| Indicator | Measurement accuracy | Measurement range |
| Status | Open or Close | |
| Temperature | 0.1℃ | -30°C~60°C |
| Relative humidity & light level | 1%RH | 0lux~65535lux |
Data interface
| Interface | Interface type | Communication protocols | Data protocols | ||
| Lora | Lora | Private | Private | ||
| Reception sensitivity -128dBm Transmission rate 2148kbps Transmitting power 17dBm | |||||
Installation and Maintenance
Installation: magnetic suction, screws, adhesive backing
Maintenance Warranty
Warranty: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
