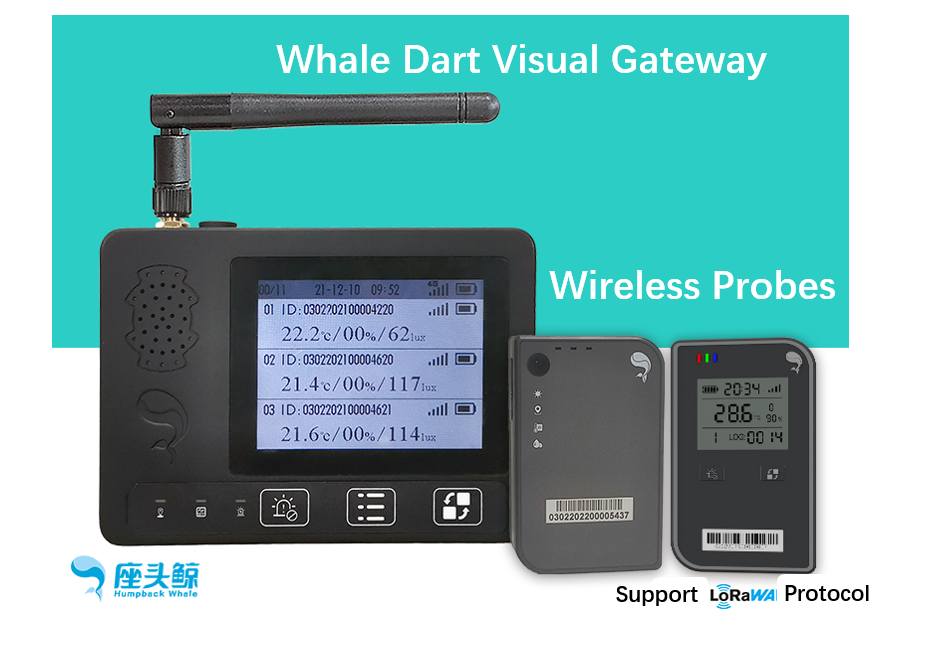

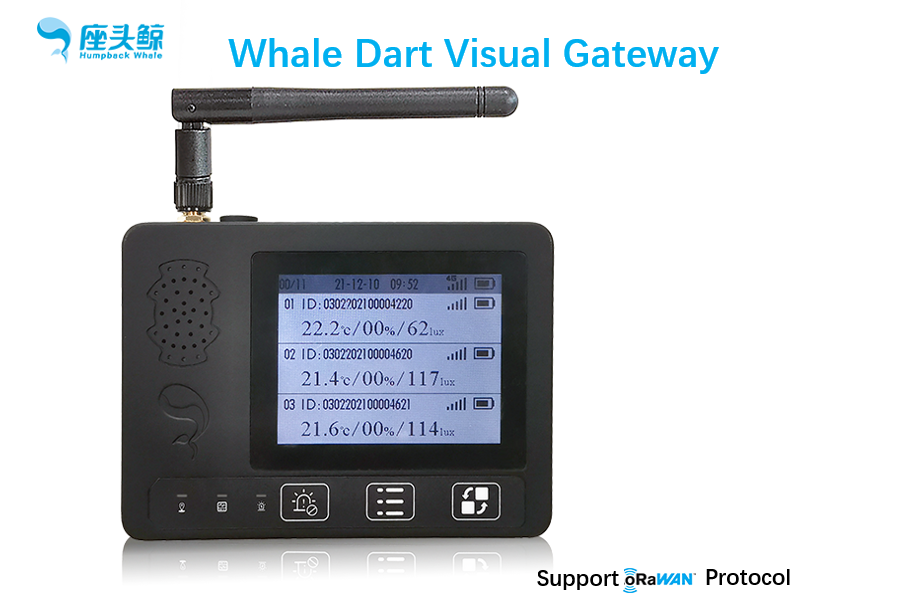

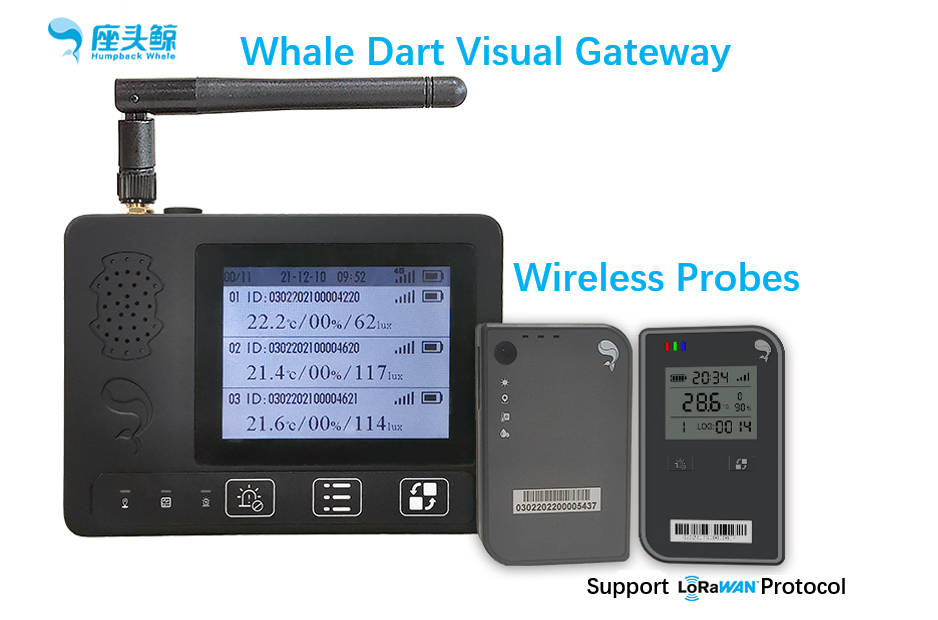

Whale Guard Gateway is a set of intelligent hardware products (gateway + probe) that collects data such as temperature and humidity, light level and gas concentration in the environment and uploads them to the cloud platform through wireless communication technology. The probe is responsible for data collection, and the gateway is responsible for data transmission and calculation; this product can collect and monitor the required scenes 7x24 hours, and the data can be uploaded to the cloud platform and analyzed and processed in time after collection (please check the instructions for use of the Whale Cloud Platform for specific operations). This set of products has the features of small size, light weight, long standby, portable installation, accurate data, and safe use, etc. It is widely used in the transportation or storage scenes of fresh food/medicine/chemicals, etc.
Product Detail
Basic Information
Product features:
-Easy installation, ready to install and use, eliminating wiring works and saving costs
-Wireless deployment, large range coverage, super number of connections, easy to add/reduce probes
-Super connection, more than 30 wireless terminals can be connected
-Intermittent transmission, save data locally when the network is interrupted and automatically renew it when the network is restored
-Sound and light alarm, sound and light alarm when the data exceeds the set threshold
-Real-time display, 2.8-inch color screen, displaying real-time probe data
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: Gateway 2.4
Model No: G24-L4Y1
Color: Charcoal gray
Size: Cube Length:110mm Width:80mm Height 23mm
Material: Shell PC+ABS
Weight: 160g
Technical parameters
Electrical characteristics
Power supply mode:
DC power supply
Rated voltage: 5V
Rated current: 2A
Auxiliary power supply: 4000mAh rechargeable battery
Host Peripherals
Display screen: 2.8 inch TFT screen
Environmental requirements
Operating temperature: -20°C ~ 60°C
Working Humidity: 0%RH ~ 80%RH
Safety Protection
Dustproof / Waterproof: IP65
Antenna: Built-in + External
Data interface
| Interface | Interface type | Communication protocol | Data protocol | ||
| Lora | Lora | Private | Private | ||
| Lora | Lora | LoraWan | LoraWan | ||
| Celluar network | Celluar network | TCP/IP | TCP/IP | ||
| 4G_CAT.1 | Celluar network |
Installation and Maintenance
Installation: magnetic suction, screws, adhesive backing
Maintenance Warranty
Warranty: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
