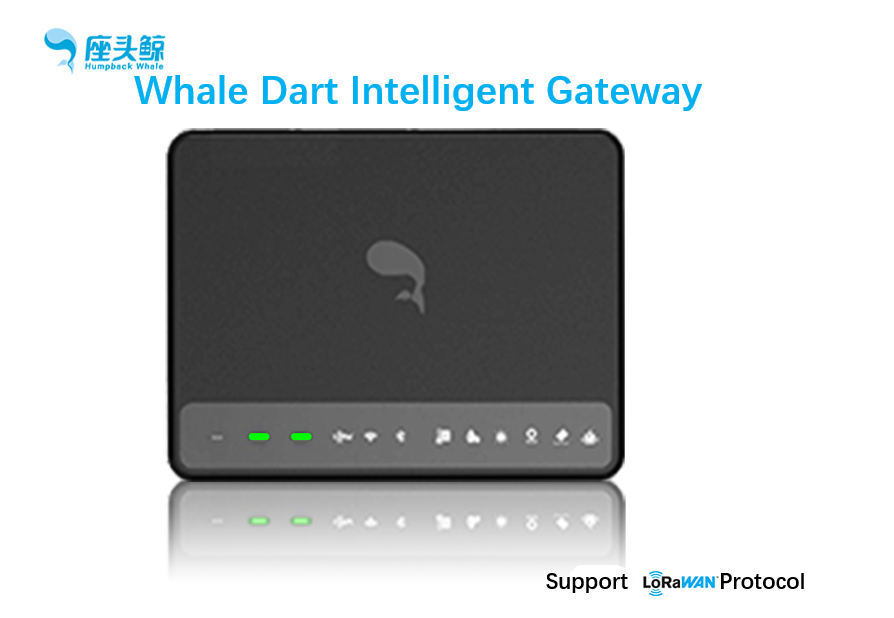

Whale Guard gateway type products are a series of low-power temperature and humidity, photosensitive and location data collection recorders based on wireless communication as well as LPWAN technology, self-adapting multi-dimensional probe devices, it can realize 24-hour uninterrupted monitoring, safe, timely and transparent, while uploading to cloud platform for real-time intuitive monitoring. By collecting temperature and humidity and photosensitive data in a large area, it can improve the accuracy of temperature and humidity in the area, alarm in time when the threshold value is exceeded, quickly grasp the change of temperature and humidity and notify relevant personnel for adjustment, widely used in cold chain/warehouse/medical equipment and other fields.
Product Detail
Basic Information
Product features:

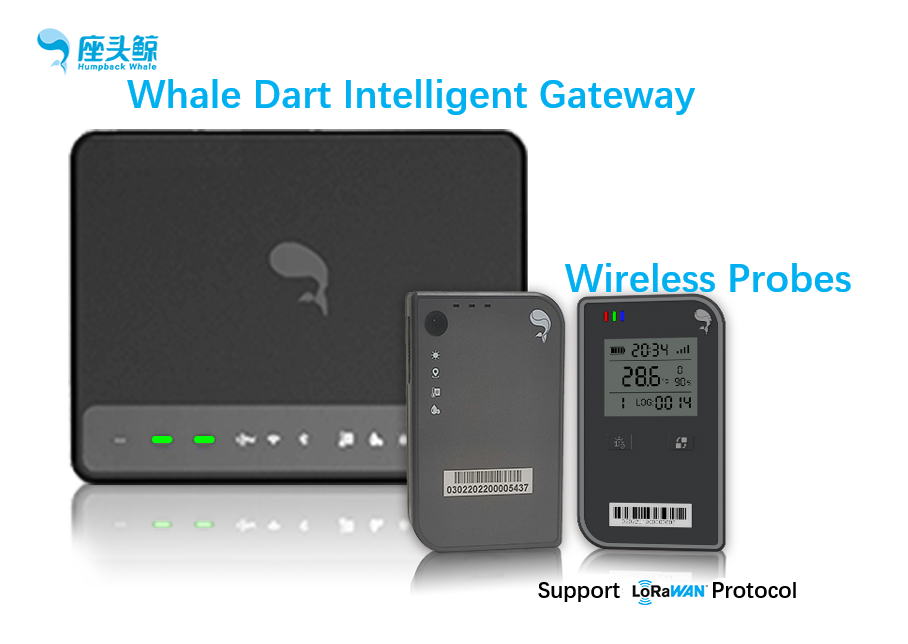

-Good adaptability, self-adapted to multi-dimensional probe devices, can carry more than 30 wireless probes
-Easy installation, ready to install and use, eliminating wiring projects and saving time costs; HTML management platform to meet lean management needs
-Accurate data, data interaction between the gateway and wireless terminal, using crc verification method
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: Gateway 2.3
Color: Charcoal Gray
Size: Cube Length: 110mm Width: 80mm Height 23mm
Material: Shell PC+ABS
Weight: 160g
Technical parameters
Electrical characteristics
Power supply mode:
DC power supply
Rated voltage: 5V
Rated current: 2A
Auxiliary power supply: 4000mAh rechargeable battery
Environmental Requirements
Operating temperature: -20°C ~ 60°C
Operating Humidity: 0%RH ~ 80%RH
Safety Protection
Dustproof / Waterproof: IP65
Antenna: Built-in antenna
Data interface
| Interface | Interface type | Communication protocol | Data protocol | ||
| Lora | Lora | Private | Private | ||
| Lora | Lora | LoraWan | LoraWan | ||
| Celluar network | Celluar network | ||||
| 4G_CAT.1 | Celluar network |
Installation and Maintenance
Installation: magnetic suction, screws, adhesive backing
Maintenance Warranty
Warranty: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
