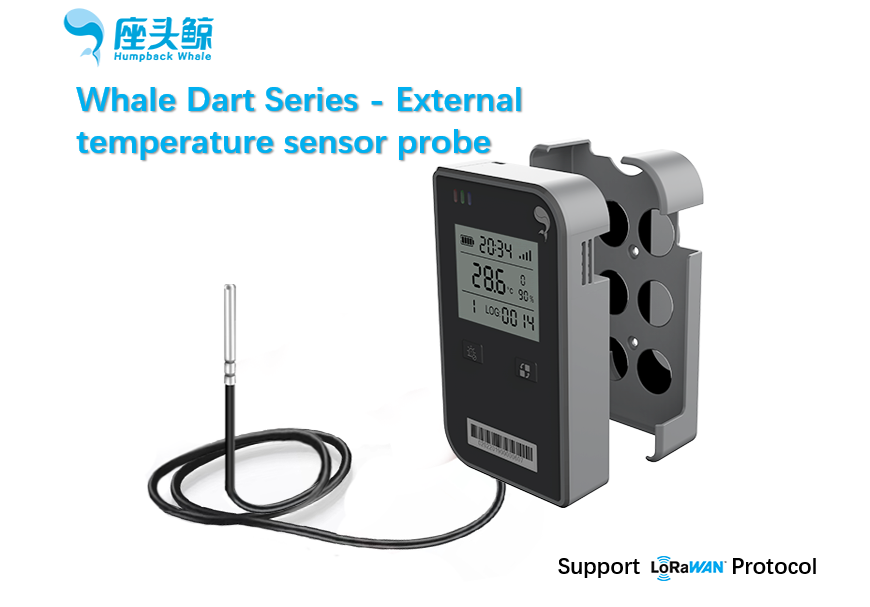

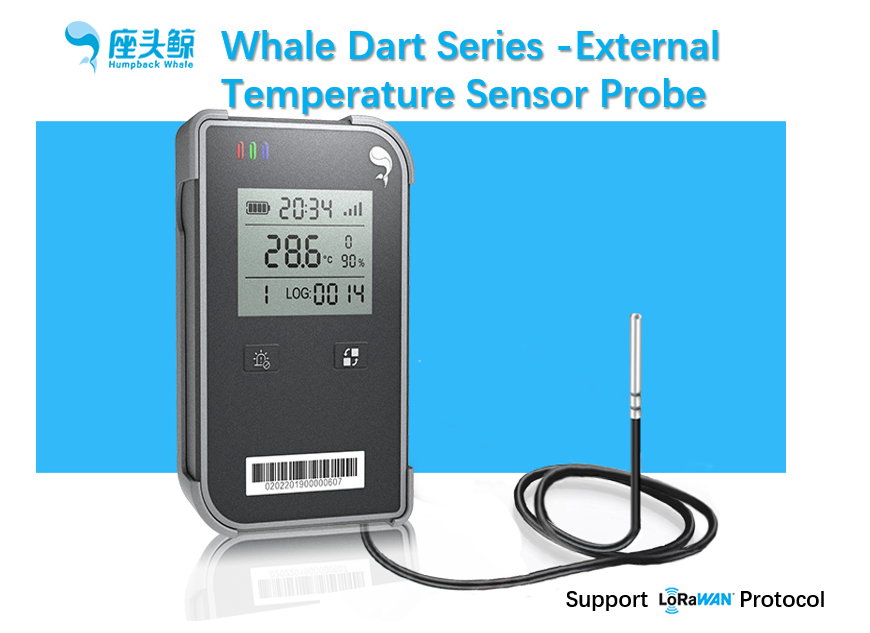

Whale Guard -T3 series visual external temperature data collection probe is an intelligent hardware product for collecting temperature data in a specific environment and uploading it to the cloud platform through wireless communication technology. This product can achieve 365*24 hours uninterrupted monitoring of the surrounding environment. After collecting the data in a specific environment, it can be uploaded to the cloud platform safely, timely and accurately and monitored in real time. When the data in the environment exceeds the set threshold value, the alarm will be timely and the relevant personnel will be notified for processing. Widely used in biomedical / fresh food / smart stores and other scenarios.
Product Detail
Basic Information
Product features:
-Easy installation, ready to install and use, eliminating wiring works and saving time costs
-Wireless communication, data transmission between the gateway and the probe terminal via lora
-Super long standby, built-in battery life up to 3 years
-Screen display, real-time display of temperature and humidity & time & power & signal, etc.
-Sound and light alarm, local sound and light alarm for temperature and humidity exceeding the threshold value
-Breakpoint renewal, when the network is interrupted, the device first saves the data. Renewed transmission when the network is restored
-Continuous collection, 365*24 uninterrupted data collection can be realized
-Whale cloud platform, support remote monitoring of multiple devices to view data in real time
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: T3 Probe Series
Model: T3-1OY1
Color: Charcoal gray
Size: Cube Length: 110mm Width: 80mm Height 23mm
Material: shell PC + ABS
Weight: 160g
Technical parameters
Electrical characteristics
Power supply method:
Built-in battery
Capacity: 10,800mAh
Replaceable: Yes
Endurance:2 years (10min on report)
Safety protection
Dustproof/waterproof: IP65
Local Alarm
Alarm mode: sound and light alarm
Functional indicators
| Indicator | Indicator type | Description | |
| Temperature | Temperature | ||
| Measurement accuracy ±0.5℃ | Measurement range -20°C~60°C |
Data interface
| Interface | Interface type | Communication protocol | Data protocol | ||
| Lora | Lora | Private | Private | ||
| Receive sensitivity -128dBm | Transmission rate 214Kbs | Transmit power 17dBm |
Installation and Maintenance
Installation: magnetic suction, screws, adhesive backing
Maintenance Warranty
Warranty: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
