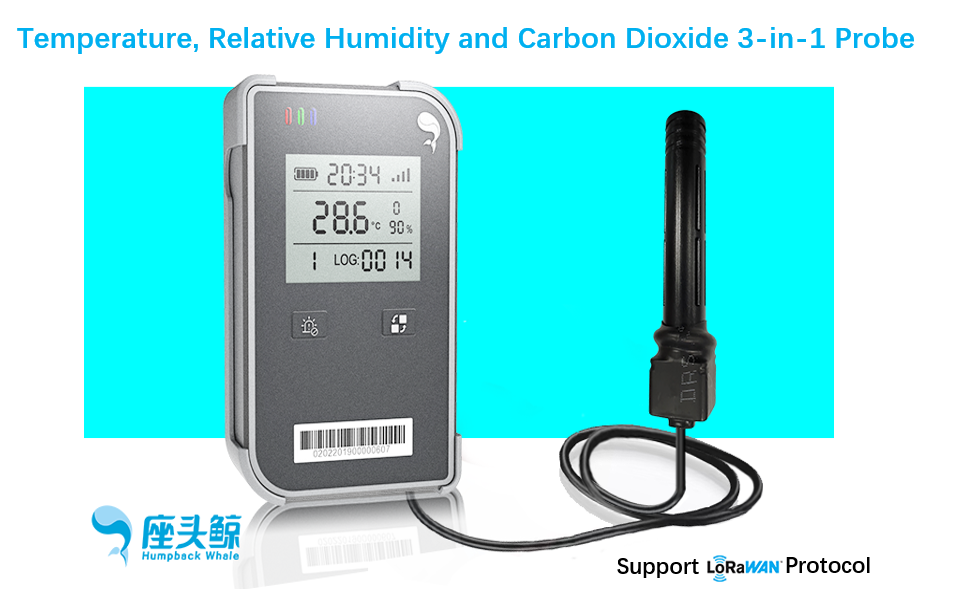

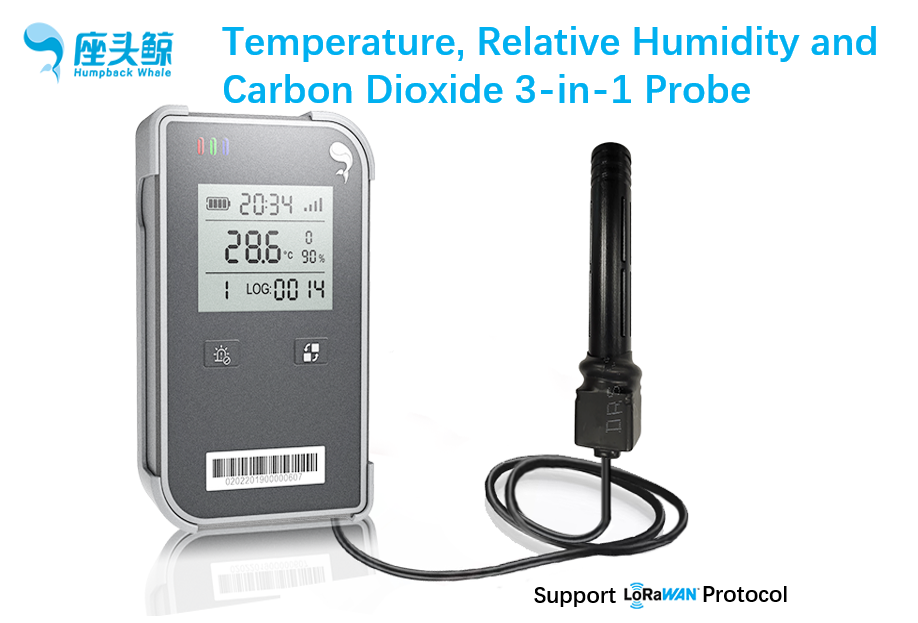

Whale Guard -T3 series visual probe is an intelligent hardware product that collects temperature and humidity, gas concentration and other data in the environment and uploads them to the cloud platform through wireless communication technology. This product can achieve 365*24 hours of uninterrupted monitoring of the surrounding environment. After collecting the data in the environment, it can be uploaded to the cloud platform safely, timely and accurately and monitored in real time. When the data in the environment exceeds the set threshold value, the alarm will be timely and the relevant personnel will be notified for processing. It is widely used in the production & storage & transportation & store scenarios in the fields of biopharmaceuticals/fresh food/agricultural products planting and farming.
Product Detail
Basic Information
Product Features:
-Easy installation, ready to install and use, eliminating wiring works and saving time costs
-Wireless communication, data transmission between the gateway and the probe terminal via lora
-Long standby, built-in battery life up to 3 years
-Screen display: real-time display of temperature & humidity & time & power & signal, etc.
-Breakpoint renewal, when the network is interrupted, the device saves data first. Wait for the network to resume and then renew the transmission
-Continuous collection, 365*24 uninterrupted data collection can be realized
-Whale cloud platform, support remote monitoring of multiple devices to view data in real time
Product Specifications
Manufacturer: Humpback Whale (Shanghai) Information Technology Co.
Brand: Whale Guard
Series: T3 series visual probe products
Model: T3-2IY1
Color: Charcoal gray
Size: Cube Length:118mm Width:72mm Height 27mm
Material: Shell PC+ABS
Technical parameters
Electrical characteristics
Power supply method:
Built-in battery
Capacity: 10,800mAh
Replaceable: Yes
Safety protection
Dustproof/waterproof: IP65
Condensation-proof: No
Local alarm
Alarm mode: sound and light alarm
Functional indicators
Indicators
| Indicator | Measurement accuracy | Measurement range | Resolution | Warm-up time |
| CO2 concentration | ±5% | 0ppm[v]~10000ppm[v] | 5ppm[v] | none |
| Temperature | ±0.5°C | -30°C | 0.01°C | 60s |
| Relative humidity | ±5.0% | 0%RH~99%RH | 1%RH |
Data interface
| Interface | Interface type | Communication protocol | Data protocol | ||
| Lora | Lora | Private | Private | ||
| Receive sensitivity-128dBm Transmission rate 2148kbps Transmit power17dBm | |||||
| Lora | Lora | LoraWan | LoraWan | ||
Installation and Maintenance
Installation: magnetic suction, screws, adhesive backing
Maintenance Warranty
Warranty: repairable and replaceable
Warranty period: 1 year
* The data displayed on the whole site are for reference only and are from the humpback whale laboratory. The actual data will be slightly different depending on the using environment, especially the temperature conditions and the degree of environmental confinement, electromagnetic radiation, equipment function opening, software version, etc. Please refer to the actual data.
